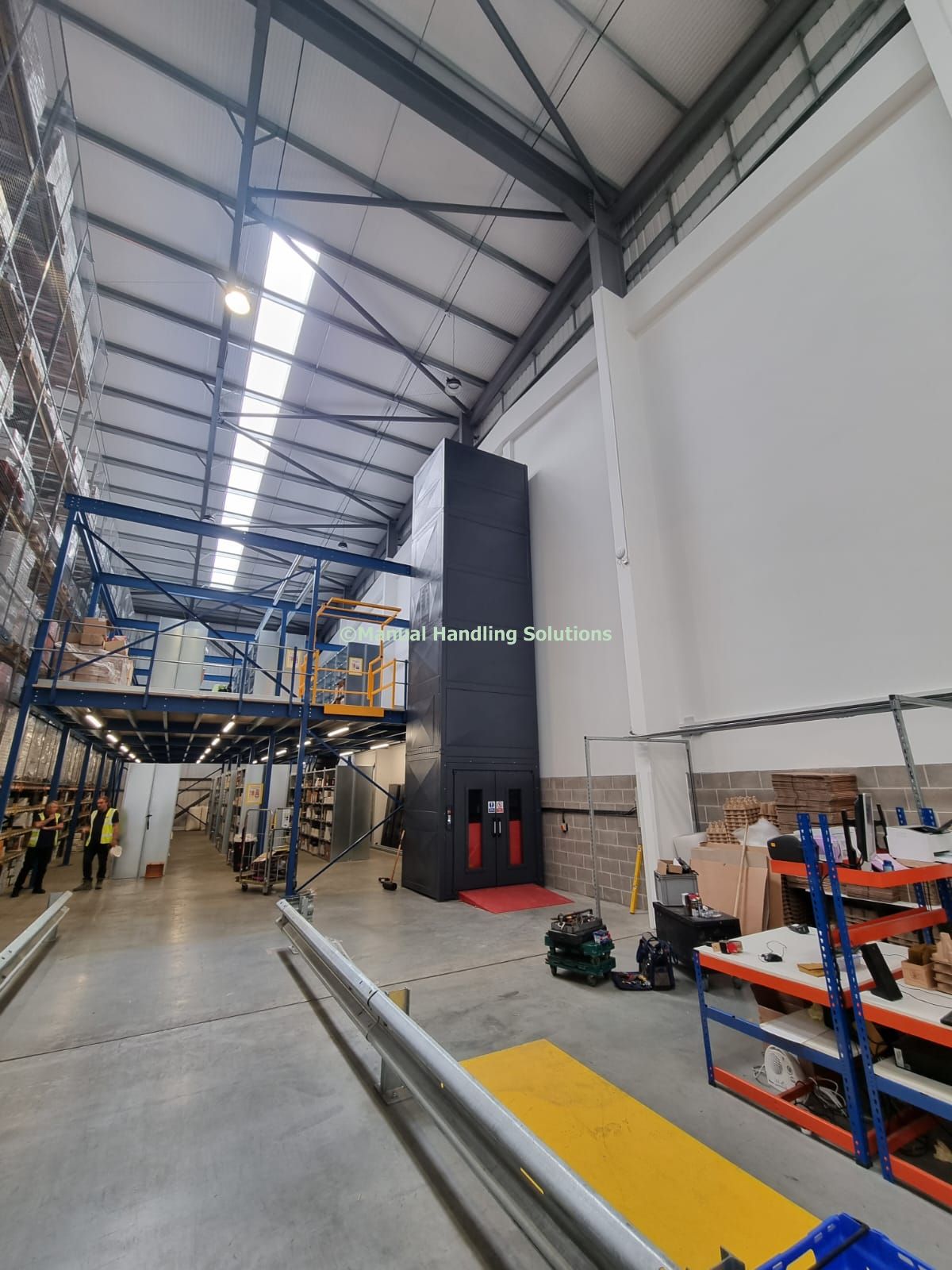

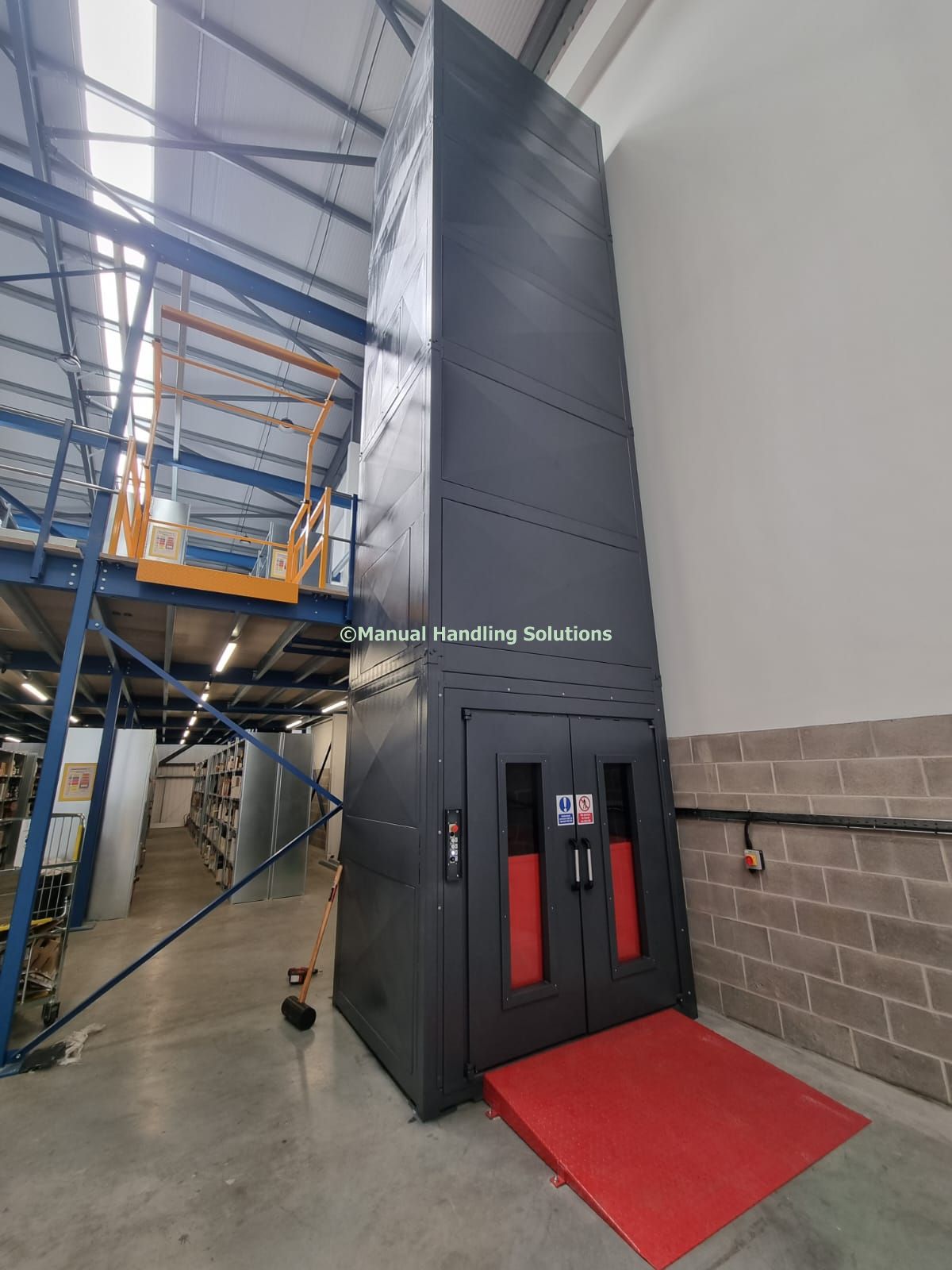

Mezzanine Goods Lift Brackley a 3 stop single column 1200kg hydraulic Goods only Lift with a finished floor level 7000mm and platform size 1500mm x 1500mm fitted with 1100mm high infilled panels on the non-loading sides and 1100mm high twin opening interlocked gates finished in Red RAL 3020 installed Brackley, Northamptonshire NN13 5SZ. To assist loading at the lower level the lift is supplied with loading ramp H120mm x W1660mm x L1250mm finished Traffic Red RAL 3020.

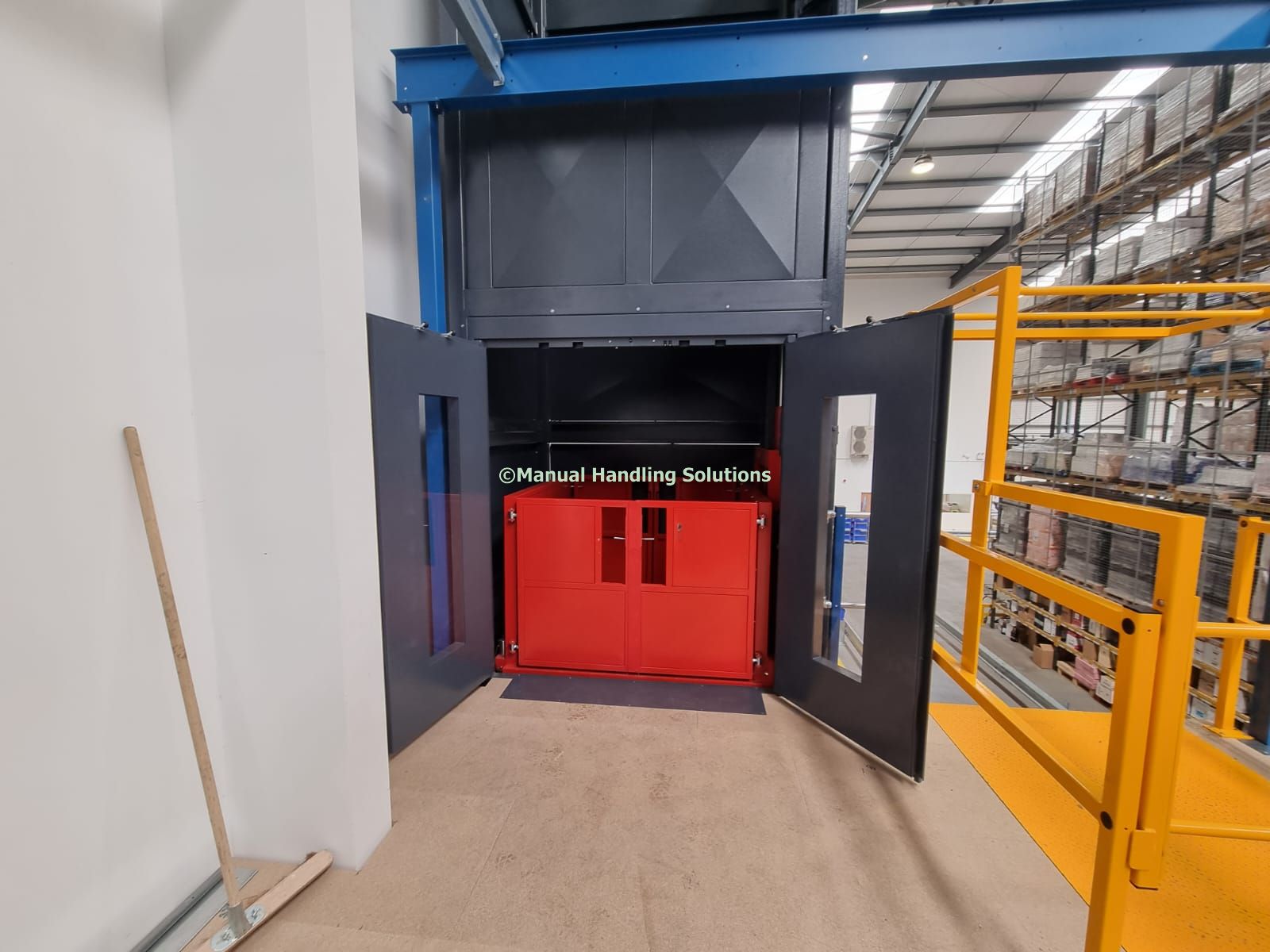

Mezzanine Goods lift Brackley is a freestanding self-supporting lift structure manufactured from 120mm x 120mm box section steel with clad infilled panels Grey RAL 7024. Goods lift fitted with 2000mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper-level structure is 2290mm.

Platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at the top floor. “Press to Go” one touch controls with emergency stop at all levels fitted as standard.

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 5.5Kw control voltage 24-volt IP55.

The mezzanine floor is only built as a single tier with the option of the second floor being added later.

General Specification

- - Emergency lowering system when power is cut off.
  - Prewired control box included magnetic starter and overload fuse.
  - Upper-level travel limit switch and overload relief valve
  - Hydraulic cylinders feature emergency velocity fuse if line breaks.
  - Control points are fitted to both ground and upper floor levels.
  - The hydraulic power pack and electrical system housed separately at ground level.
  - The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
  - Lift loaded and unloaded with hand pallet truck.
  - CE plated and built-in compliance with the Machinery Directive2006/42/EC
  - Installation; Arrow Park, Northampton Road, Brackley, Northamptonshire NN13 5SZ

If you require an economical solution to lift pallets, trolleys, products from ground floor to a secondary mezzanine level or multi-level flooring consider a free standing / self-supporting mezzanine goods lift. Manual Handling Solutions offer you a one-stop shop for industrial mezzanine goods lifts ideal for factory, warehousing, manufacturing plant, retail deliveries, supermarkets, restaurants, pubs, museums, theatres, and hotels. We offer full project management in design, manufacture, installation, and service.

Manual Handling Solutions durable range of goods only lifts are designed to offer the simplest, quickest, most reliable and economical solution to heavy lifting problems. With the capabilities to lift up to 18m high and the option of custom lift cage sizes, makes them suitable for almost anywhere from supermarkets, distributions centres to large department stores and factories, goods lifts are ideal for moving large, bulky items, furniture, palletised goods, warehouse stock, and much more.

Mezzanine Goods Lifts covering; Brackley, Bicester, Milton Keynes, Northamptonshire, Chipping Norton, Aylesbury
