Mezzanine Floor Goods Lift London

Mezzanine Floor Goods Lift London

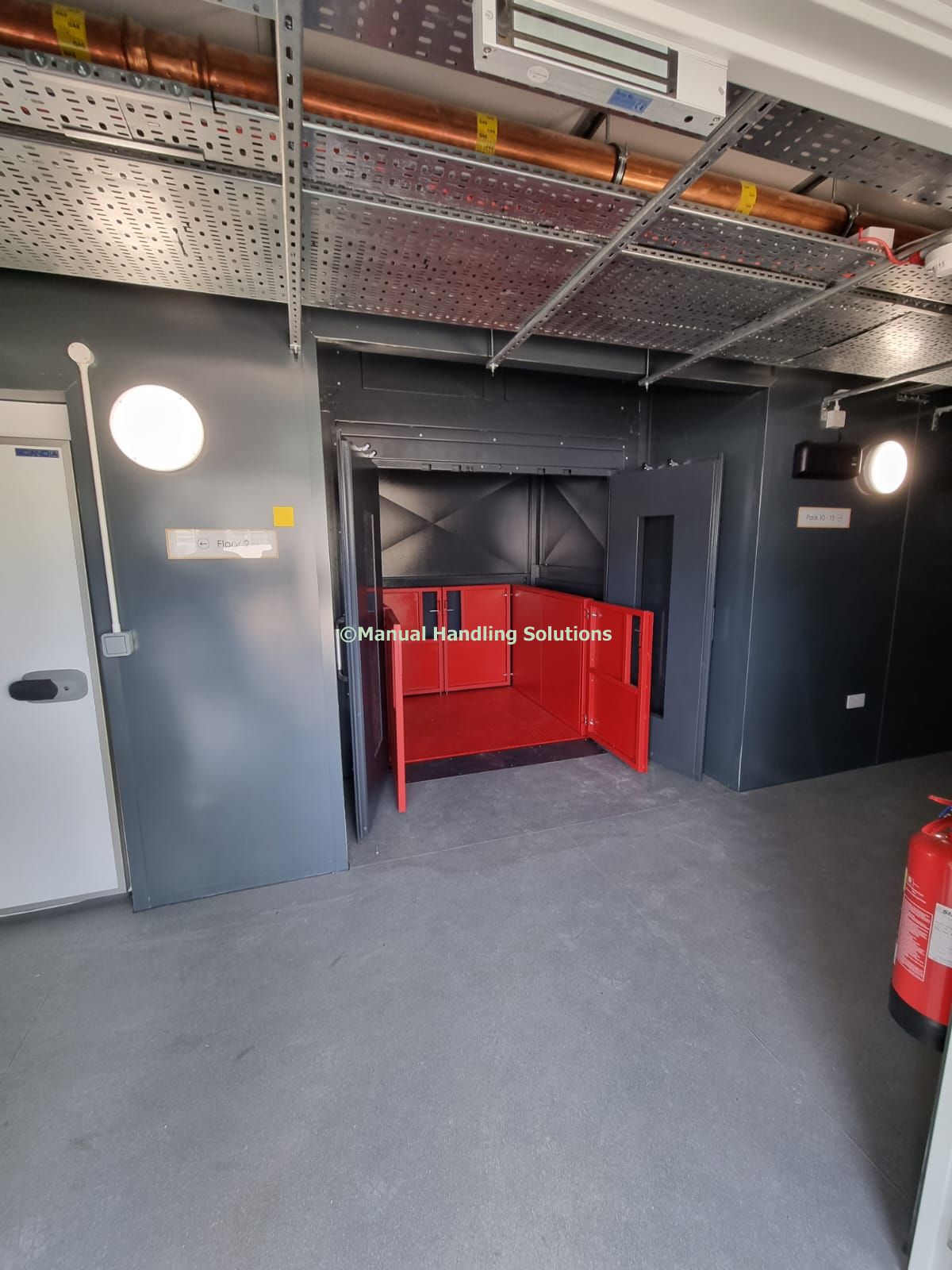

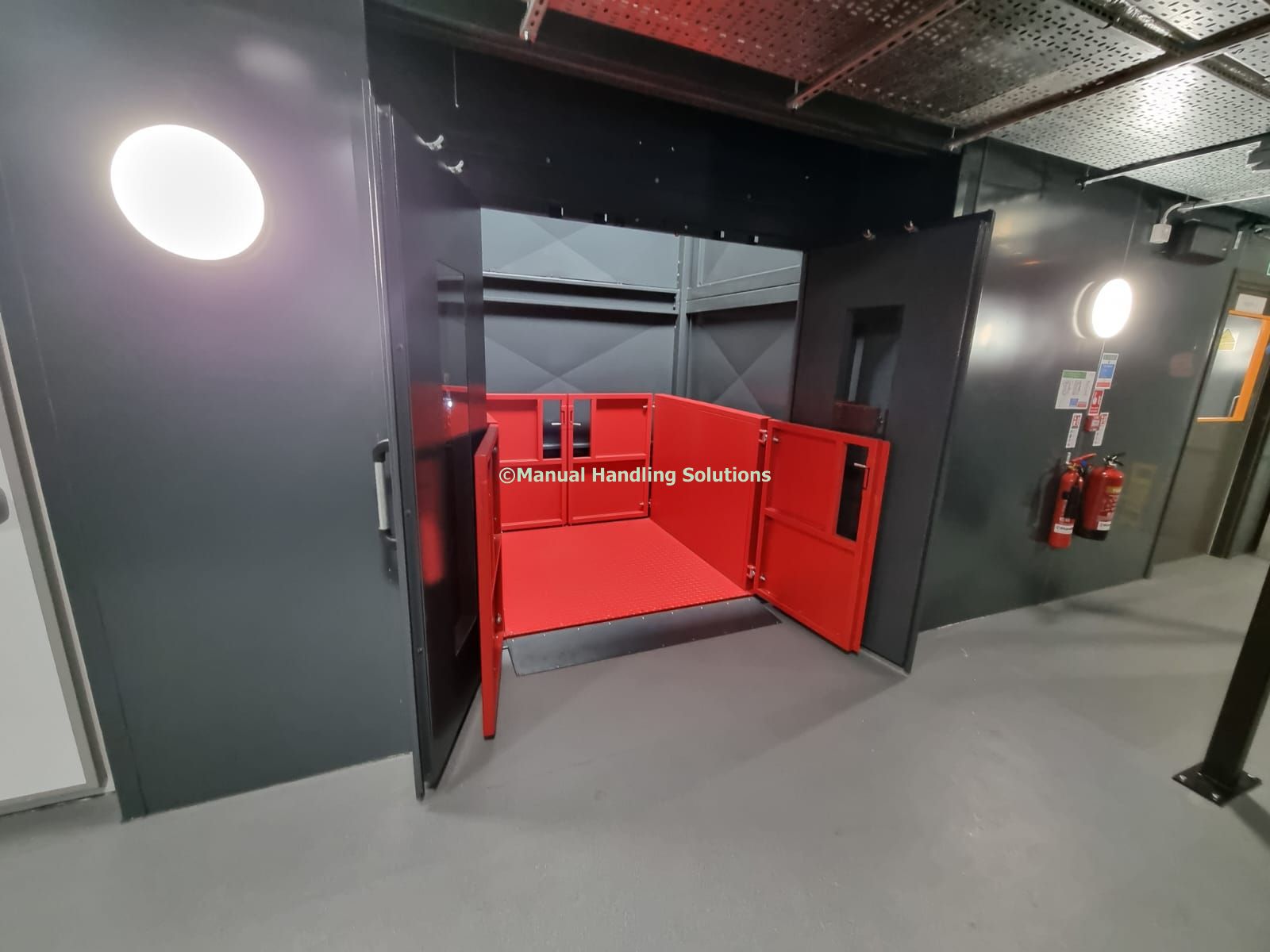

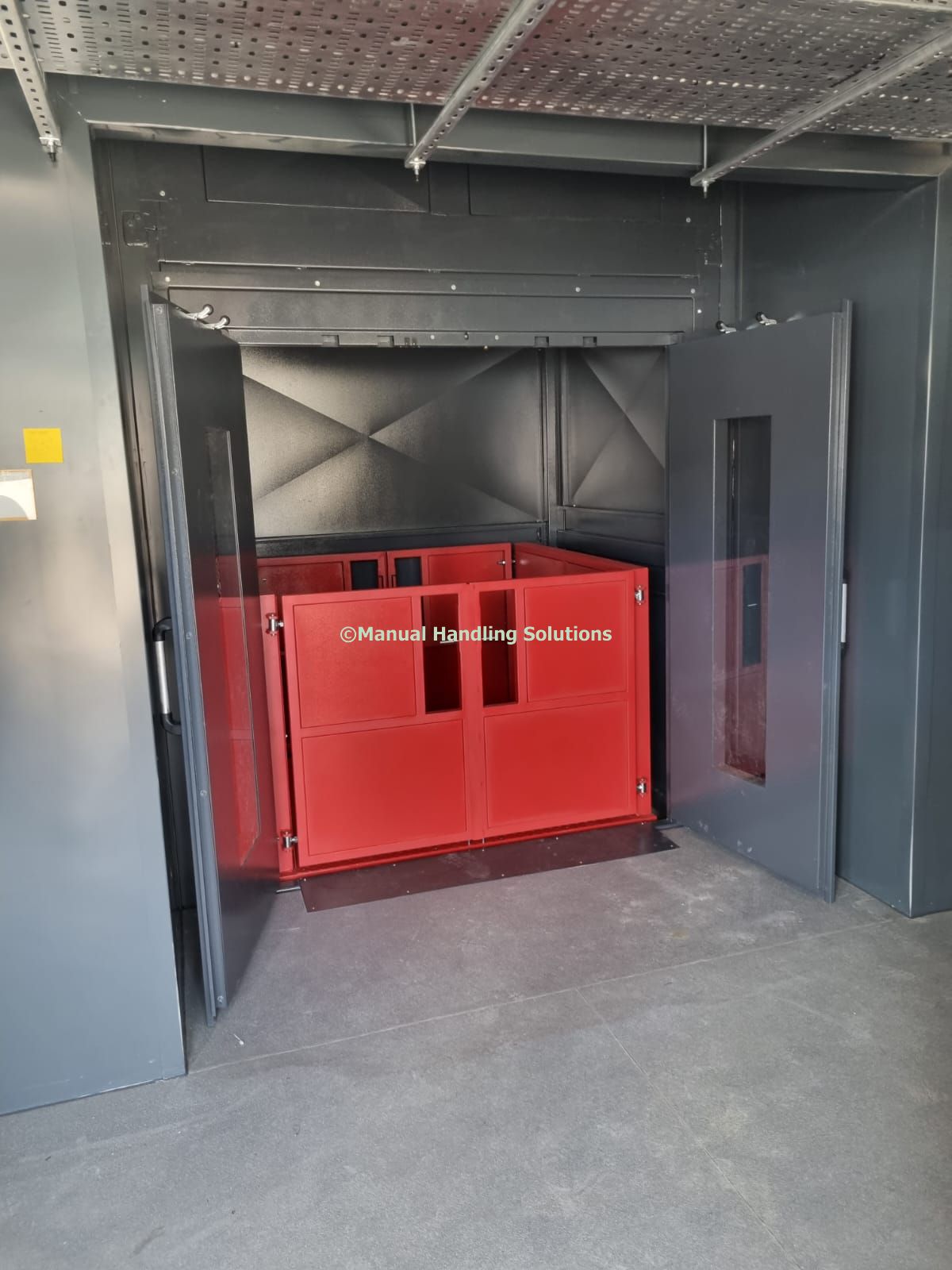

Single column 1500kg pit installed 3 stop heavy duty hydraulic Goods only Lift same side loading positioned within a pre-built shaft installed Unit A, 964 North Circular Road, Staples Corner, London. Goods Lift with FFL 5970mm and platform size 1500mm x 1500mm fitted with 1100mm high infilled panels on the non-loading sides and 1100mm high twin opening interlocked gates finished in Red RAL 3020.

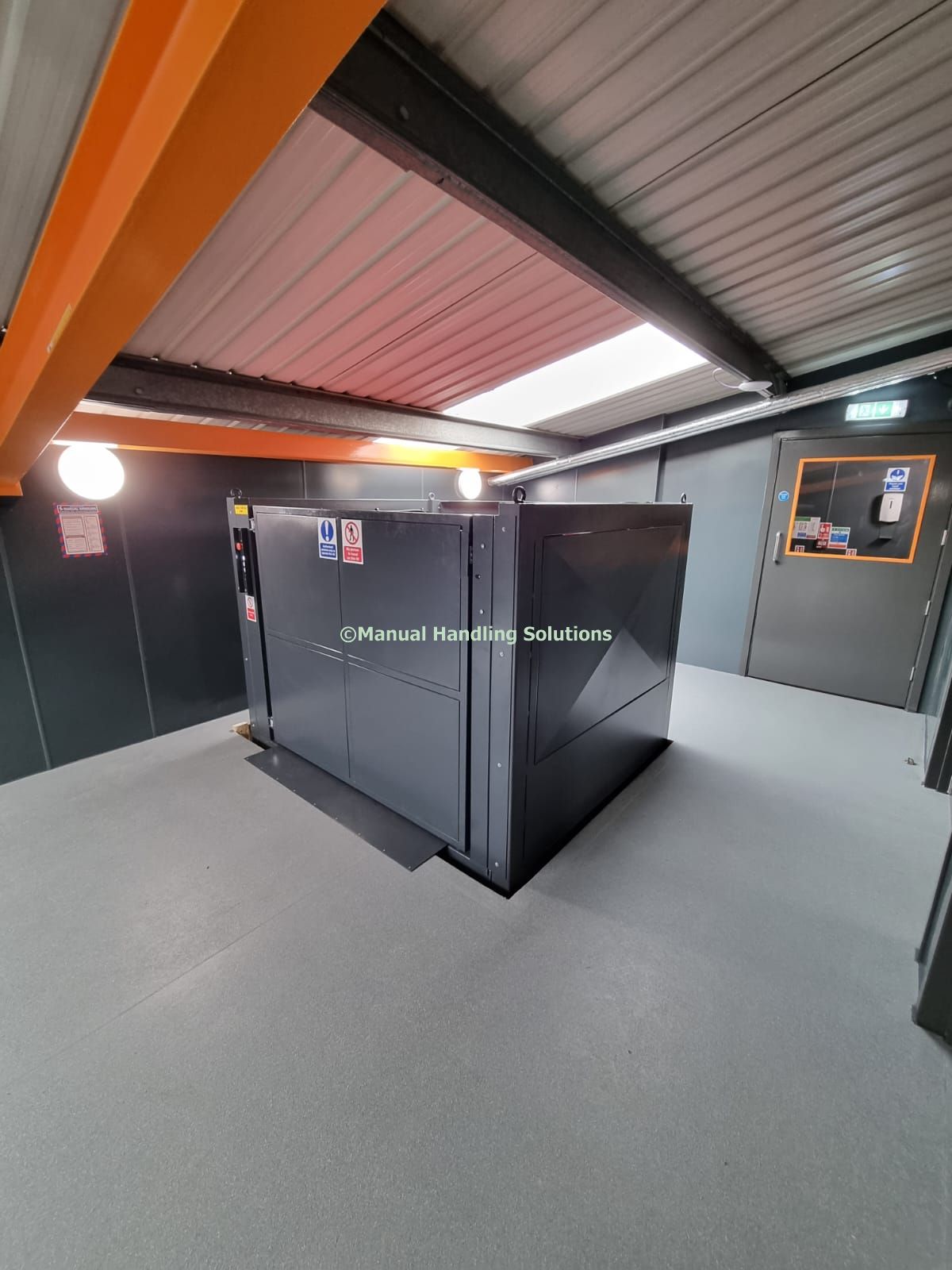

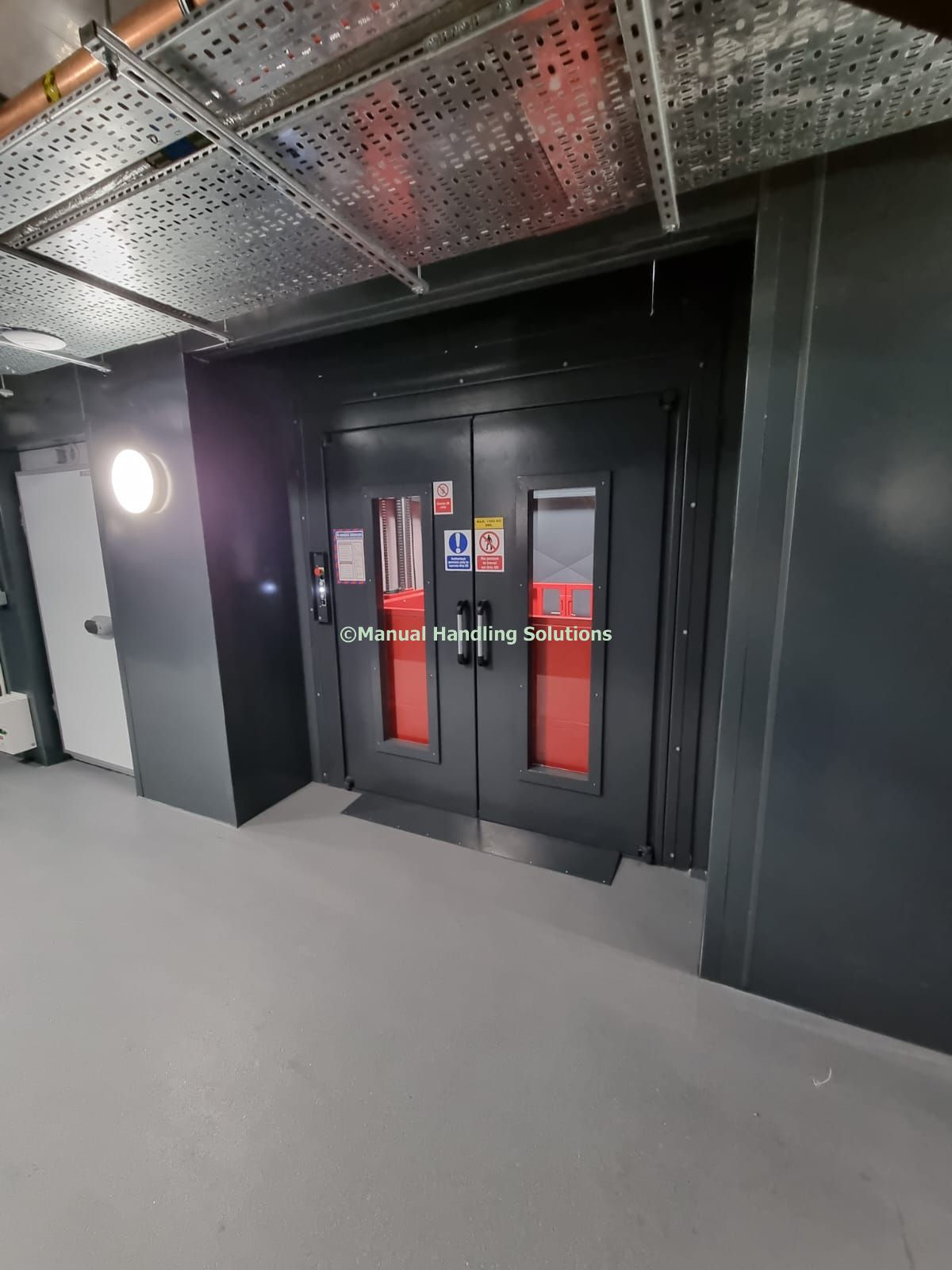

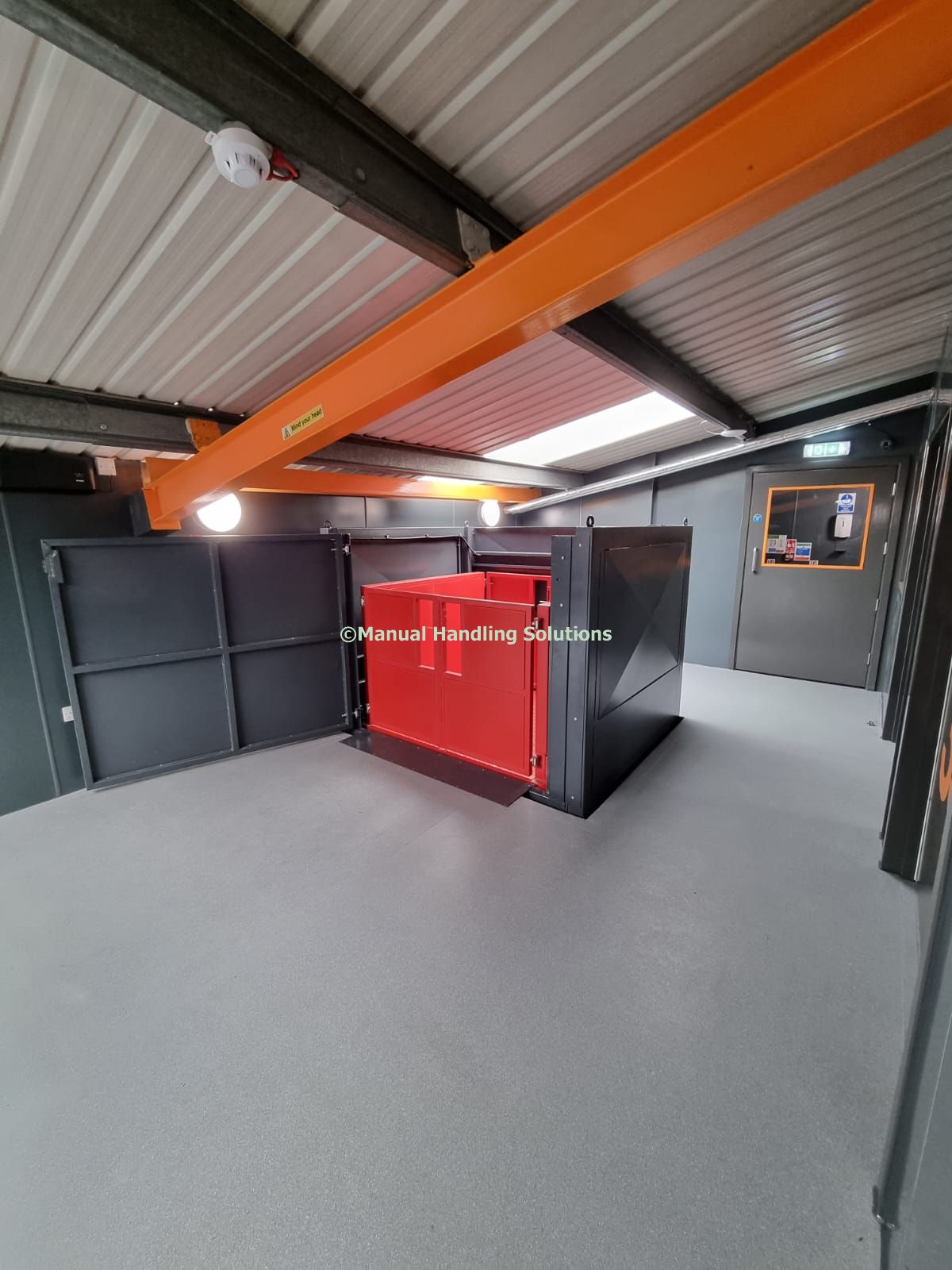

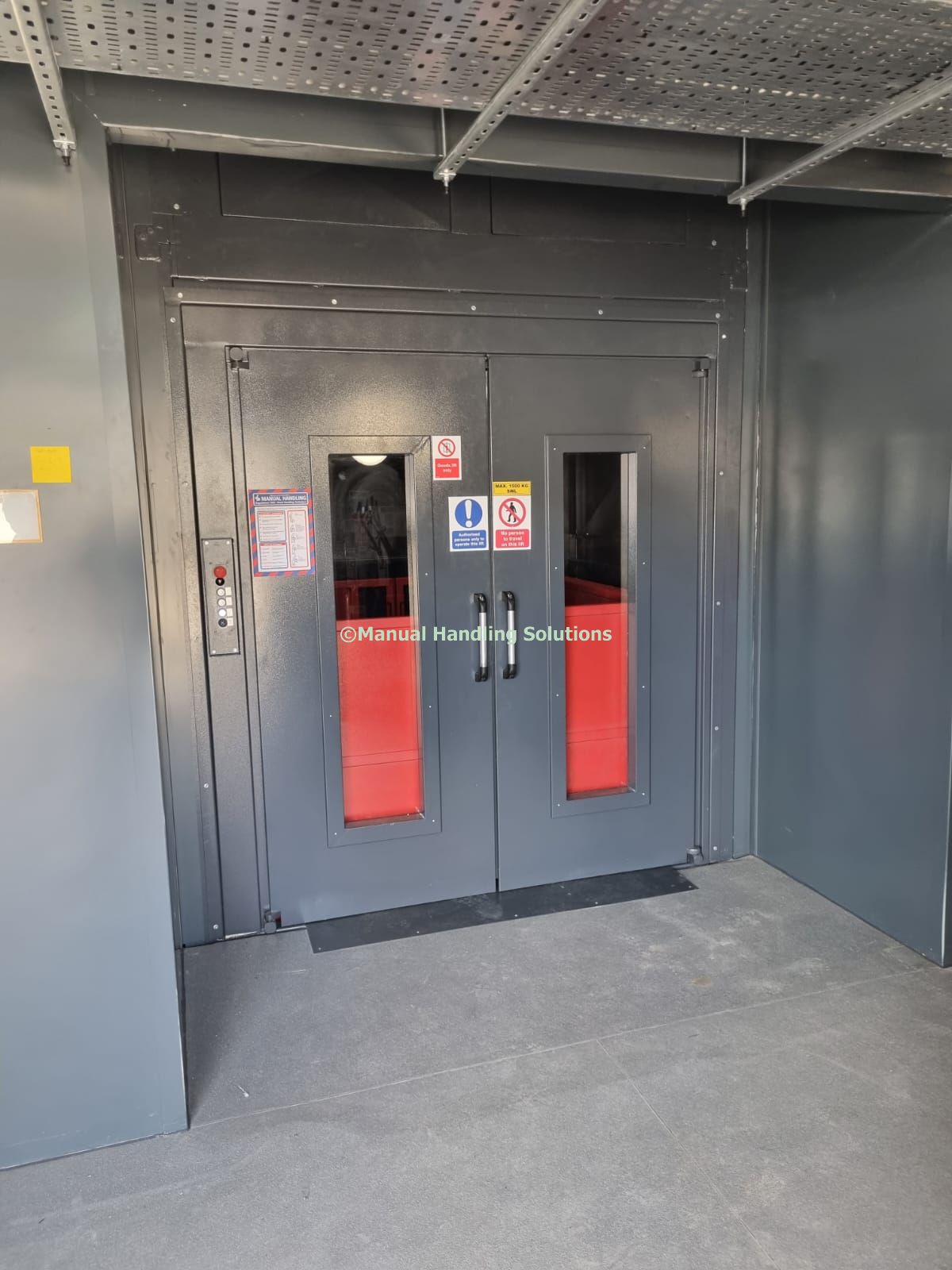

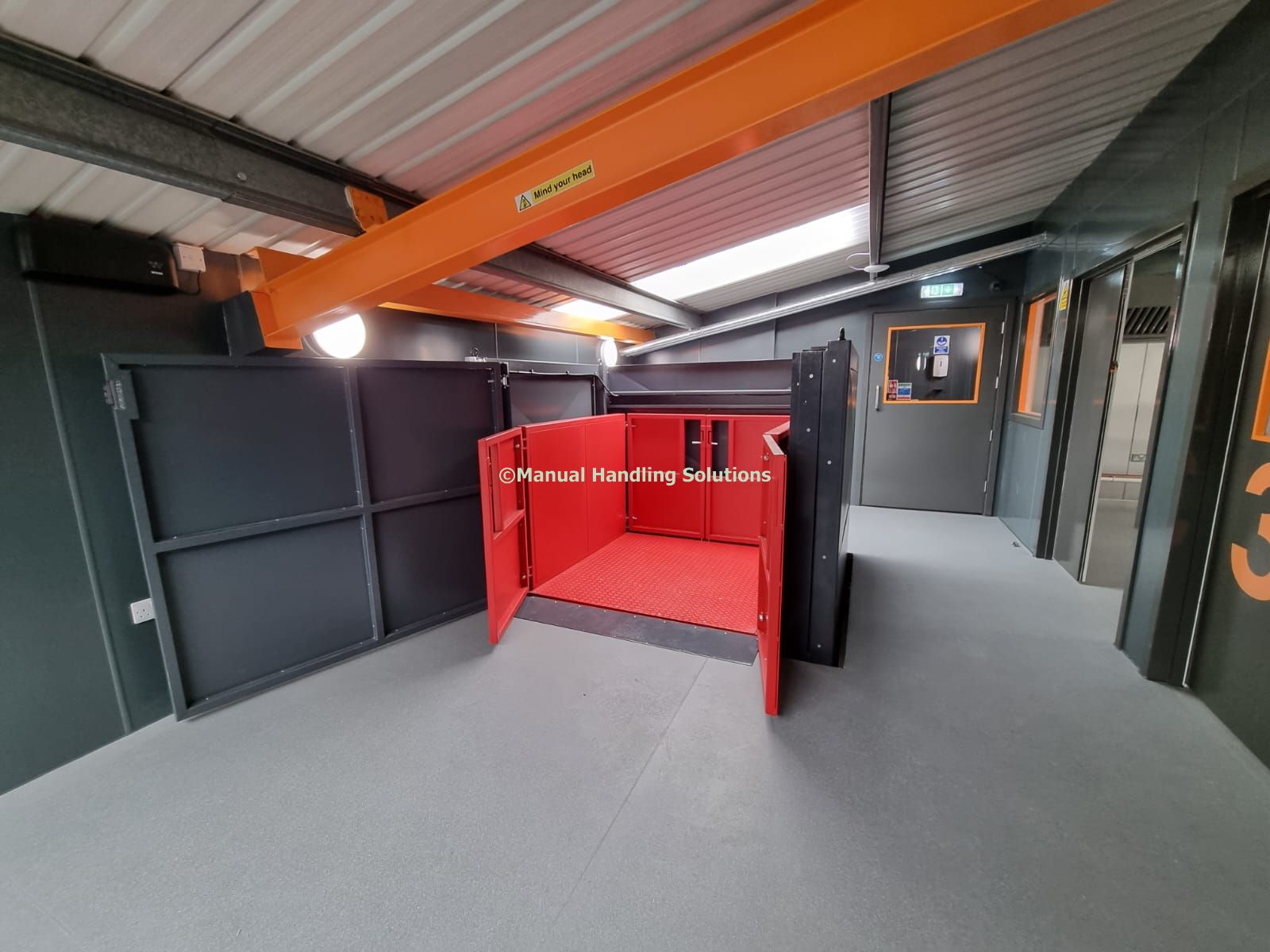

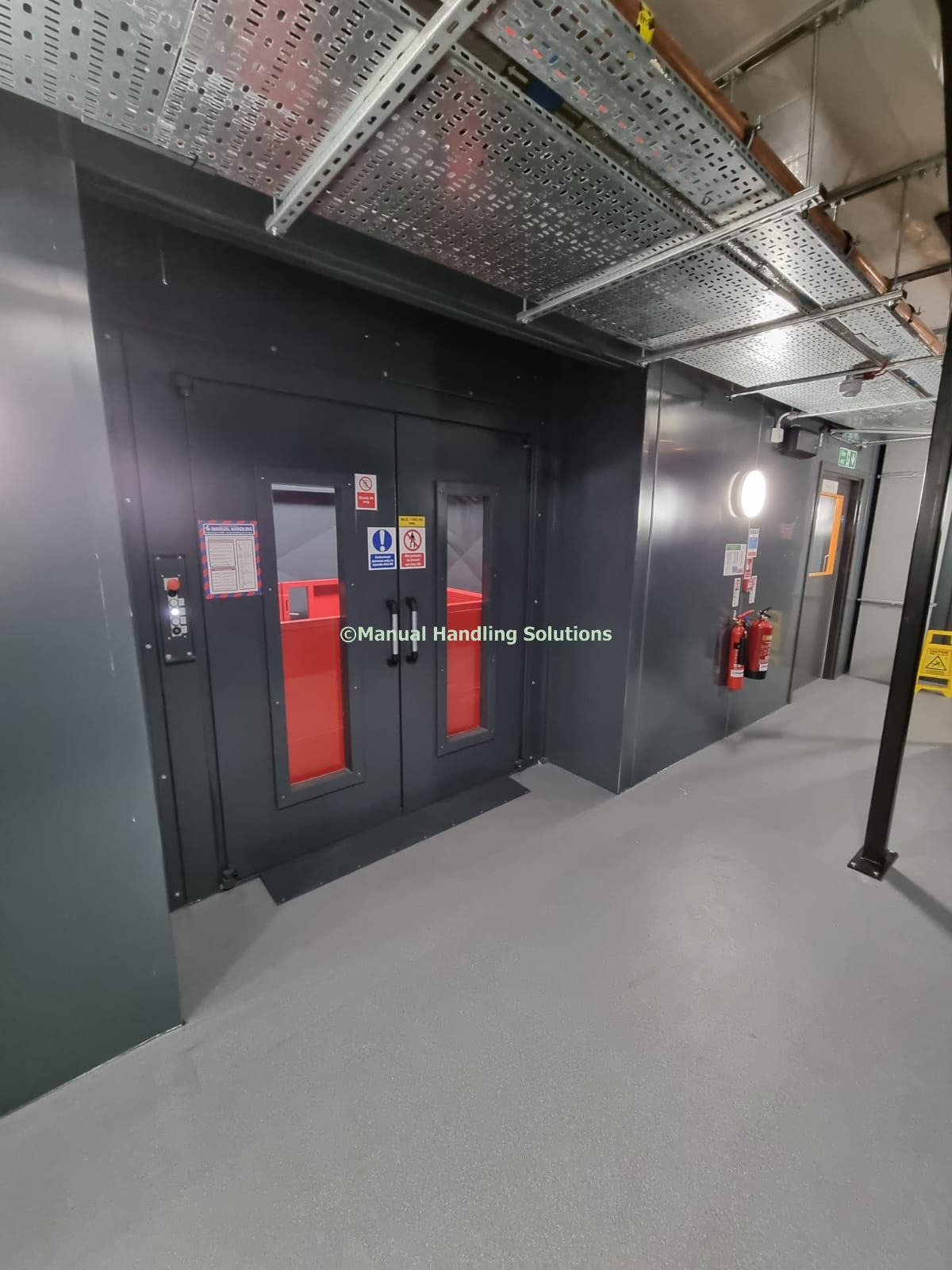

Mezz Goods lift is a freestanding self-supporting lift structure manufactured from 120mm x 120mm box section steel with clad infilled panels Grey RAL 7024. Mezzanine Goods Lift fitted with 2000mm high double loading doors cladded with Perspex viewing panels at ground and 1^st floor level at the upper level due to installation constraints we fitted a 1500mm high enclosure with single gate. Each level fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed.

Mezzanine floor Goods Lift Platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at the upper floors. “Press to Go” one touch controls with emergency stop at all levels fitted as standard.

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 5.5Kw control voltage 24-volt IP55.

General Specification

- - Emergency lowering system when power is cut off.
  - Prewired control box included magnetic starter and overload fuse.
  - Upper-level travel limit switch and overload relief valve
  - Hydraulic cylinders feature emergency velocity fuse if line breaks.
  - Control points are fitted to both ground and upper floor levels.
  - The hydraulic power pack and electrical system housed separately at ground level.
  - The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
  - CE plated and built-in compliance with the Machinery Directive2006/42/EC
  - Installation; Unit A, 964 North Circular Road, Staples Corner London, NW2 7JR

Manual Handling Solutions – Goods Lifts offer bespoke custom designed materials handling and lifting equipment. We provide some of the most advanced handling equipment available from standard products to a bespoke solution. Our range of lifting equipment and materials handling products are by far the most sophisticated and technically advanced and manufactured to the highest standard. As a Handling Solutions provider our goal is to work closely with our customers and bring the most technically advanced handling products – solutions to market.

The range of mezzanine goods lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used in distribution facilities, warehouses, car dealerships, retail storage areas, museums, theatres, hotels, and many other environments, mezzanine lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Goods lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

A goods lift from MHS is a cost-effective solution to transport bulky or heavy items. Health and Safety obligations dictate that you must provide a safe and injury free workplace – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. Need something bespoke to your specification then our custom-made lift services can help contact Manual Handling Solutions to discuss your exact requirements. Trade enquires welcome.
