Goods Lift

Goods Lift is designed to fully integrate with a Mezzanine floor.

External Goods Lifts Galvanised

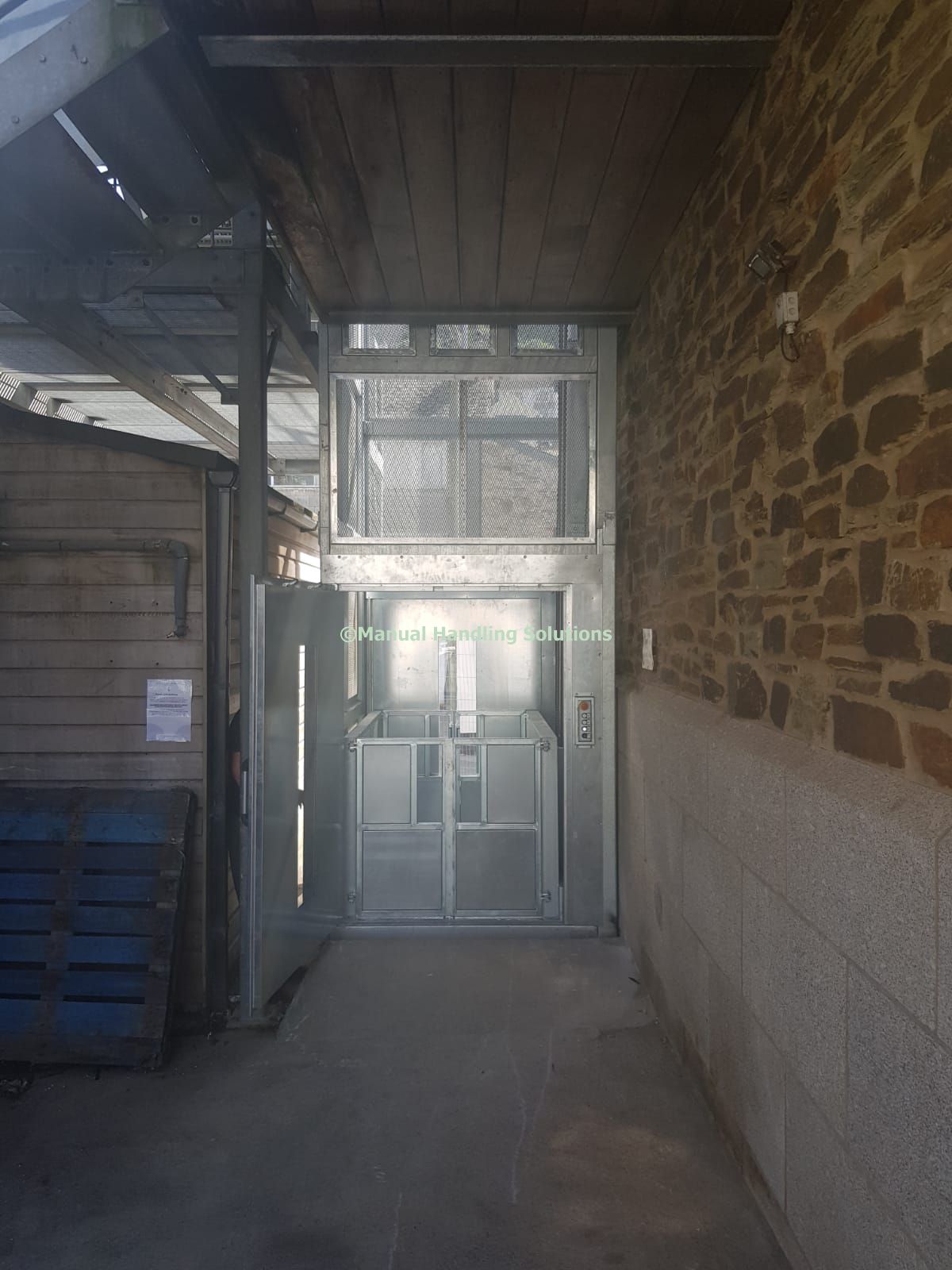

External galvanised pit installed 3 stop goods lift 1000kg with finished floor levels 3900mm and 6350mm with a platform size 1820mm x 1150mm fitted with 1100mm high infilled panels on the non-loading sides and twin opening interlocked gates installed Looe Harbour Cornwall

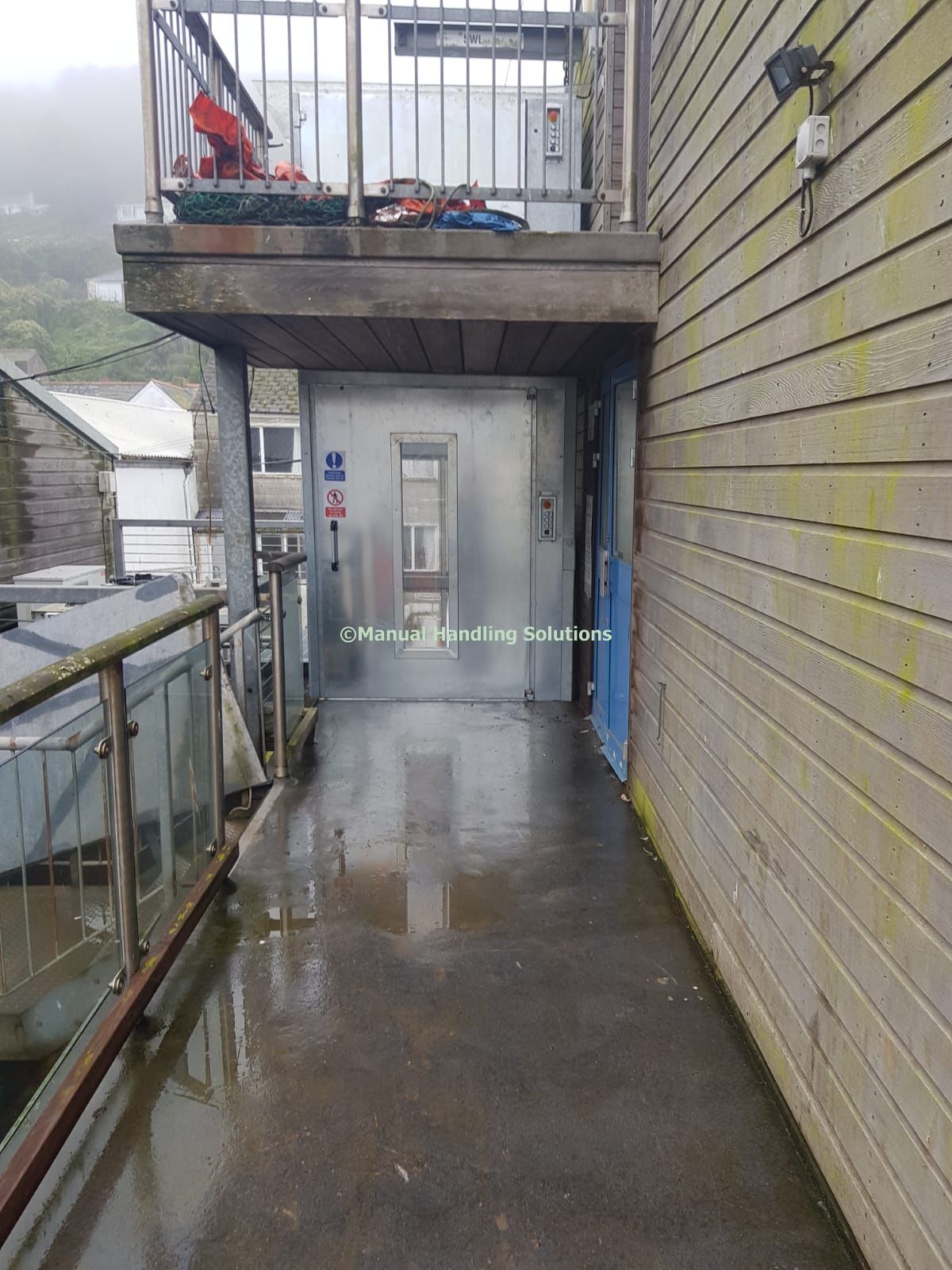

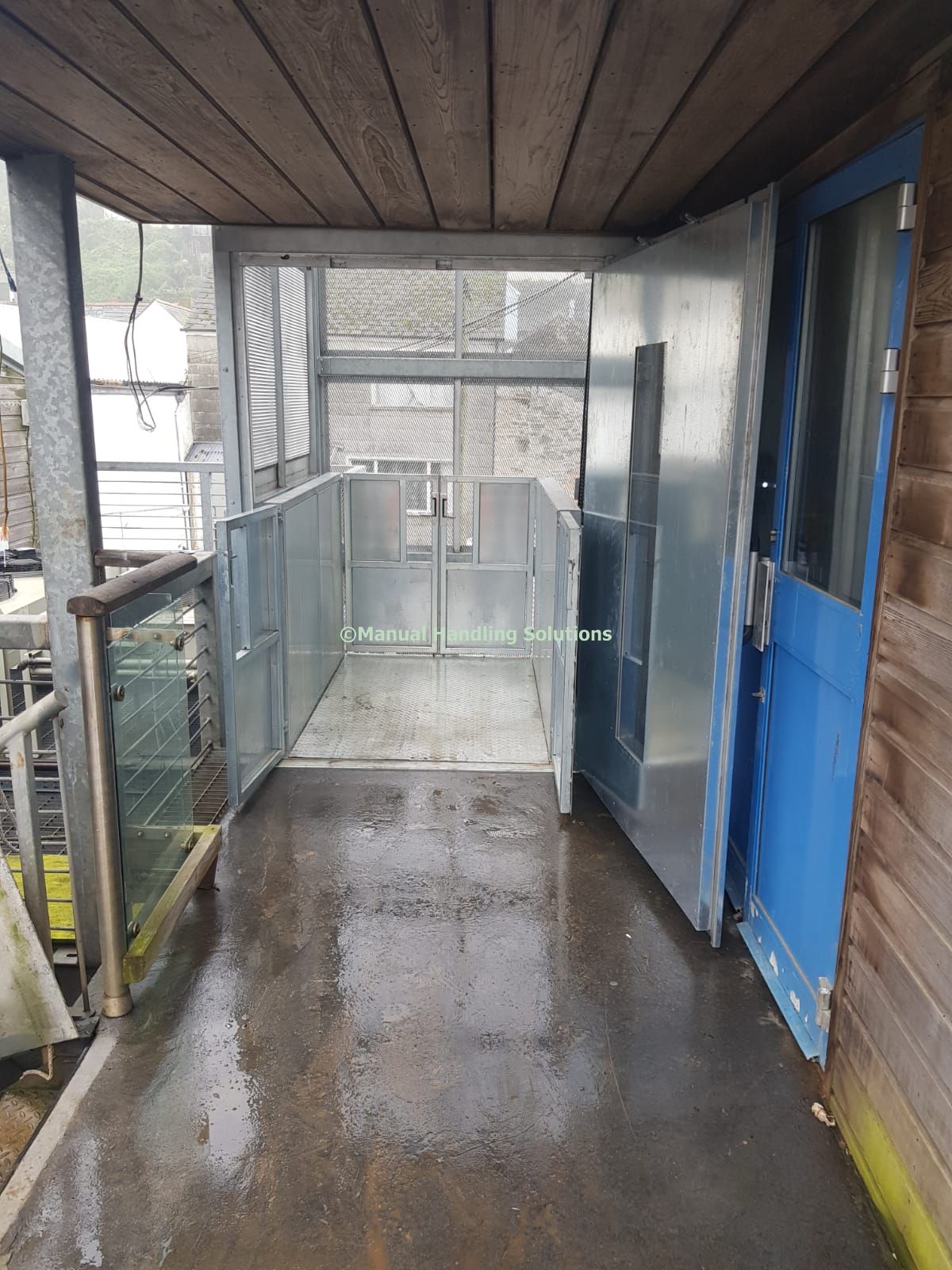

The lift structure is self-supporting and manufactured from 150mm x 150mm box section steel with mesh infilled galvanised panels. At the lower level entry can be accessed from either side while the upper levels are single entry. Goods lift fitted with 2000mm high single loading doors cladded with a Perspex viewing panel at ground and first floor only, the upper level fitted with half height door. Each entry is fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the support structure is 7651mm.

Galvanised Goods Lift supplied with safety shoot bolts which allows for the operator to enter the lift platform safely while the lift is docked at the upper levels, the shoot bolts also eliminates any flex in the platform during loading and unloading. “Press to Go” one touch controls with emergency stop at each entry levels fitted as standard.

The power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm with is located internally of the building. Electrics 3 phase, 400v, 3Kw control voltage 24 volt IP67.

General Specification

- - Emergency lowering system when power is cut off
  - Pre wired control box included magnetic starter and overload fuse
  - Upper level travel limit switch and overload relief valve
  - Hydraulic cylinders feature emergency velocity fuse if line breaks
  - Control points are fitted to both ground and upper floor levels
  - The hydraulic power pack and electrical system housed separately at ground level
  - The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
  - Installation; Looe Harbour Cornwall

Custom designed external Goods Lifts the perfect solution to multi-floor transportation of equipment and goods,

We’re happy to talk you through our diverse range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.Manual Handling Solutions offer a versatile range of hydraulic galvanised goods lifts they have been designed and manufactured to offer simple, economical and reliable solution to heavy lifting problems for a variety of applications, including warehouses, industries, supermarkets, restaurants, hotels, hospitals, private residences and office buildings. A galvanised goods lift from Manual Handling Solutions is a cost effective solution to transport bulky or heavy items in your commercial application. Health and Safety obligations dictate that you must provide a safe and injury free work place – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. We can custom design a goods lift system to specifically meet your needs.

Goods Lift covering, Redruth, Plymouth, Paignton, Portsmouth, Torquay, Exmouth

reducing the risk to employee’s, increasing efficiency and ultimately improving the bottom line. The goods lift range is fully bespoke to fit all shapes and sizes of goods.
